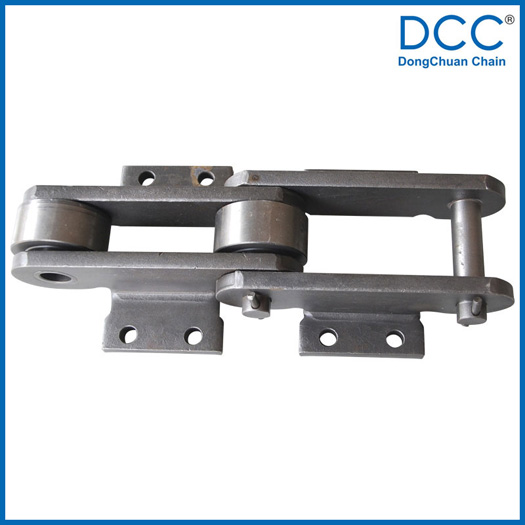

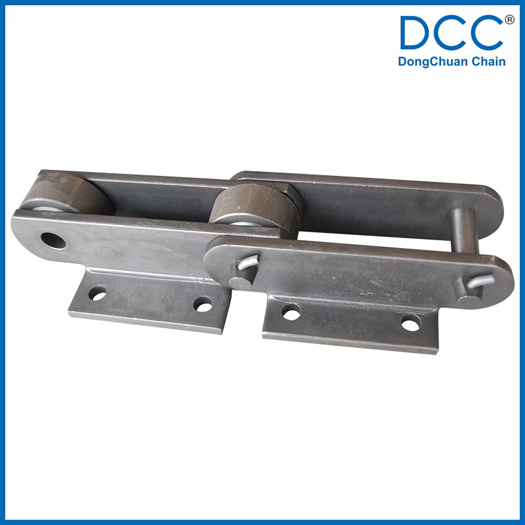

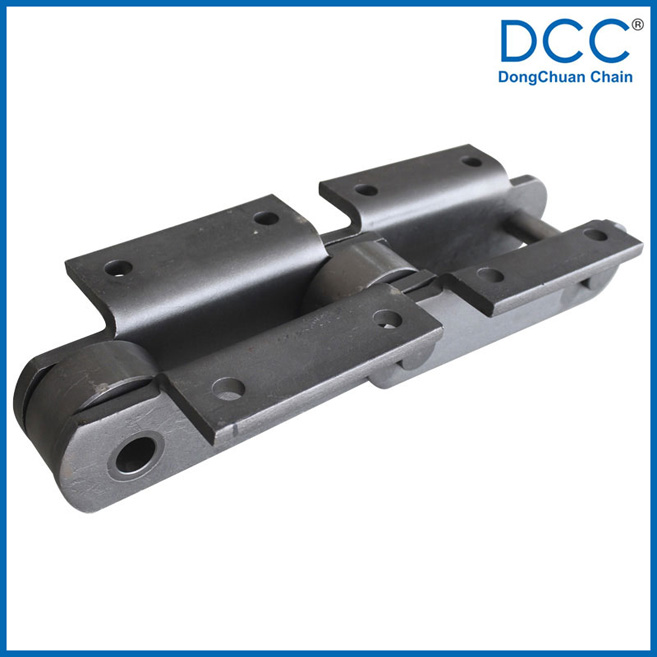

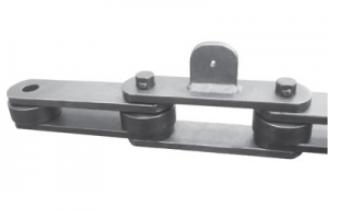

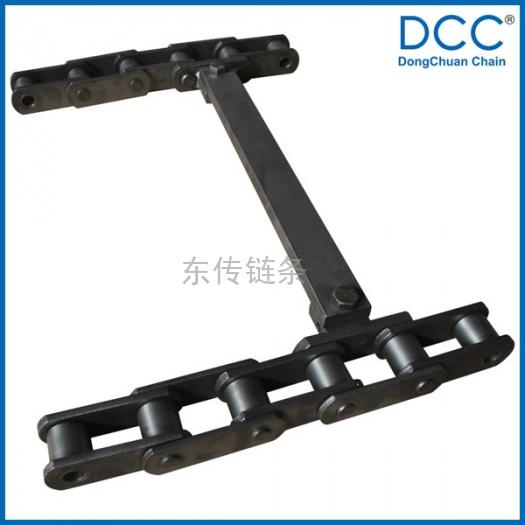

糖機輸送鏈

http://www.dlqkagv.cn/uploadfiles/211.149.195.244/webid148/source/201507/20355.jpg

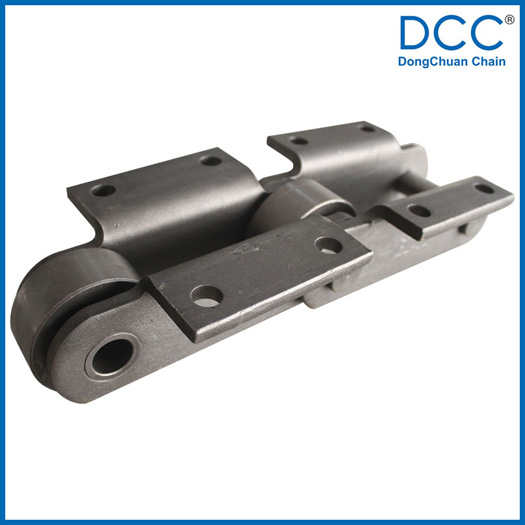

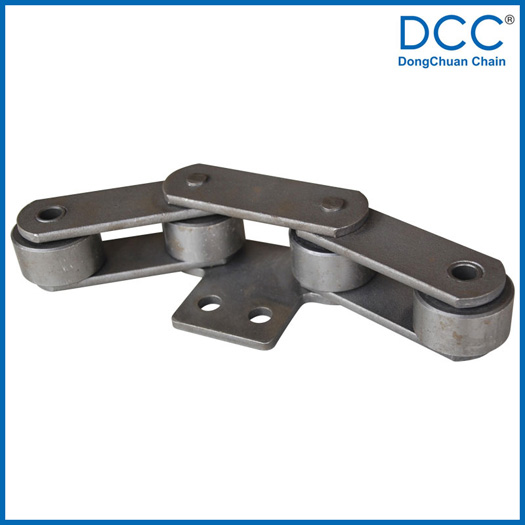

糖機輸送鏈
東傳全國咨詢熱線：
0519-88710908

詳細描述：

我們對采用甘蔗和甜菜制糖的工序和設備工況有各方面的了解，同時擁有豐富的設計經驗和制造技術，能夠為全球范圍內的制糖工業，從原料、提汁、澄清、蒸發到干燥、篩分、包裝等整個加工系統，提供傳動、提升和輸送用途的專用糖機鏈條。鏈條采用不銹鋼和合金鋼的材質組合，鏈條的銷軸也在表面高頻后再鍍鉻處理，鏈條的抗拉強度和耐磨性非常高，破斷載荷zui小有50KN，zui大能達到620KN。

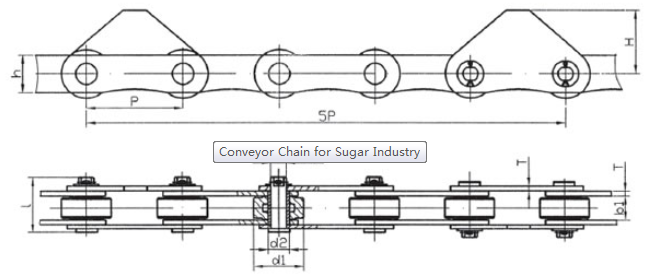

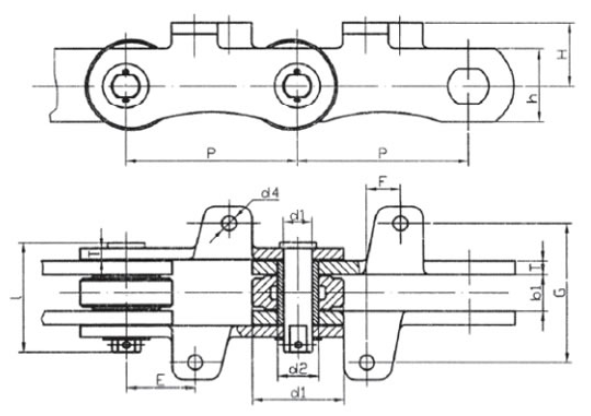

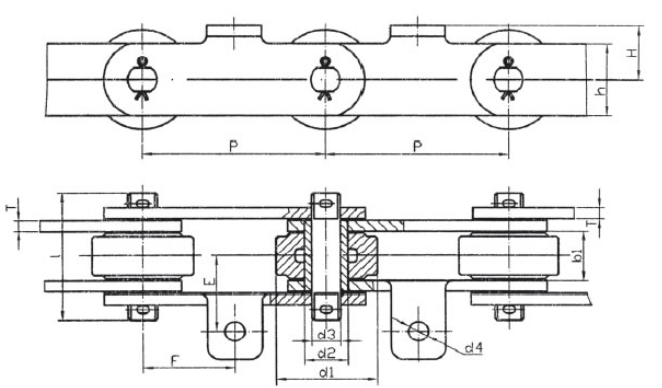

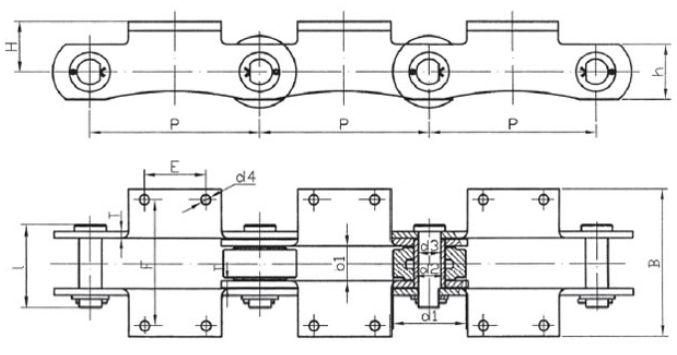

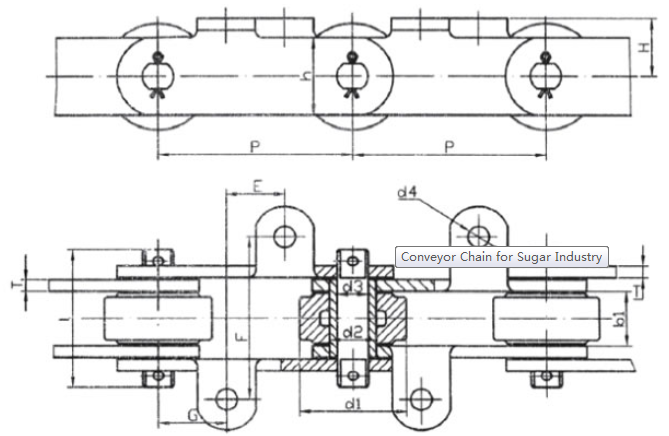

Chain No.	Pitch P (mm)	Diameter of roller d1 (min.) (mm)	Inner width of inner link b1 (min.) (mm)	Diameter of bushing d2 (mm)	Diameter of pin d3 (mm)	Length of pin L (mm)	Height of sidebar h (mm)	Thickness of sidebar T (mm)	Other data					Breaking load Q (min.) (KN)	Weight per meter q (kg/m)
									E (mm)	F (mm)	G (mm)	H (mm)	d4 (mm)
DC/T80-100Pa I-S	100	55	30	22	16	73	40	6	40	84	30	29	11	80	12

Chain No.	Pitch P (mm)	Diameter of roller d1 (min.) (mm)	Inner width of inner link b1 (min.) (mm)	Diameter of bushing d2 (mm)	Diameter of pin d3 (mm)	Length of pin L (mm)	Height of sidebar h (mm)	Thickness of sidebar T (mm)	Other data					Breaking load Q (min.) (KN)	Weight per meter q (kg/m)
									E (mm)	F (mm)	G (mm)	H (mm)	d4 (mm)
DC/T100-100Pa I-S	100	55	28	24	16	71	40	6	30	84	35	30	11	100	11

Chain No.	Pitch P (mm)	Diameter of roller d1 (min.) (mm)	Inner width of inner link b1 (min.) (mm)	Diameter of bushing d2 (mm)	Diameter of pin d3 (mm)	Length of pin L (mm)	Height of sidebar h (mm)	Thickness of sidebar		Other data					Breaking load Q (min.) (KN)	Weight per meter q (kg/m)
Chain No.	Pitch P (mm)	Diameter of roller d1 (min.) (mm)	Inner width of inner link b1 (min.) (mm)	Diameter of bushing d2 (mm)	Diameter of pin d3 (mm)	Length of pin L (mm)	Height of sidebar h (mm)	T1 (mm)	T2 (mm)	E (mm)	F (mm)	G (mm)	H (mm)	d4 (mm)	Breaking load Q (min.) (KN)	Weight per meter q (kg/m)
DC/T330-150Pa Ⅱ-S	150	80	32	36	25	104	65	12	10	60	30	122	55	13	330	24.5
DC/T380-150Pa Ⅰ-S	150	80	32	36	25	104	65	12	10	60	30	122	55	13	380	24.5

Chain No.	Pitch P (mm)	Diameter of roller d1 (min.) (mm)	Inner width of inner link b1 (min.) (mm)	Diameter of bushing d2 (mm)	Diameter of pin d3 (mm)	Length of pin L (mm)	Height of sidebar h (mm)	Thickness of sidebar T (mm)	Other data					Breaking load Q (min.) (KN)	Weight per meter q (kg/m)
Chain No.	Pitch P (mm)	Diameter of roller d1 (min.) (mm)	Inner width of inner link b1 (min.) (mm)	Diameter of bushing d2 (mm)	Diameter of pin d3 (mm)	Length of pin L (mm)	Height of sidebar h (mm)	Thickness of sidebar T (mm)	E (mm)	F (mm)	G (mm)	H (mm)	d4 (mm)	Breaking load Q (min.) (KN)	Weight per meter q (kg/m)
DC/T330-154Pa Ⅱ-S	154	80	32	36	25	100	65	12	57	40	122	53	14	330	27.55
DC/T380-154Pa Ⅰ-S	154	80	32	36	25	100	65	12	57	40	122	53	14	330	27.55

Chain No.	Pitch P (mm)	Diameter of roller d1 (min.) (mm)	Inner width of inner link b1 (min.) (mm)	Diameter of bushing d2 (mm)	Diameter of pin d3 (mm)	Length of pin L (mm)	Height of sidebar h (mm)	Thickness of sidebar T (mm)	Other data						Breaking load Q (min.) (KN)	Weight per meter q (kg/m)
Chain No.	Pitch P (mm)	Diameter of roller d1 (min.) (mm)	Inner width of inner link b1 (min.) (mm)	Diameter of bushing d2 (mm)	Diameter of pin d3 (mm)	Length of pin L (mm)	Height of sidebar h (mm)	Thickness of sidebar T (mm)	E (mm)	F (mm)	G (mm)	H (mm)	k(mm)	d4 (mm)	Breaking load Q (min.) (KN)	Weight per meter q (kg/m)
DC/T330-150PHa Ⅱ-S	154	80	32	35	25	100	65	12	77	50	120	42.5	146	13	330	26
DC/T380-150PHa Ⅰ-S	154	80	32	35	25	100	65	12	77	50	120	42.5	146	13	380	26

Chain No.	Pitch P (mm)	Diameter of roller d1 (min.) (mm)	Inner width of inner link b1 (min.) (mm)	Diameter of bushing d2 (mm)	Diameter of pin d3 (mm)	Length of pin L (mm)	Height of sidebar h (mm)	Thickness of sidebar T (mm)	Other data					Breaking load Q (min.) (KN)	Weight per meter q (kg/m)
Chain No.	Pitch P (mm)	Diameter of roller d1 (min.) (mm)	Inner width of inner link b1 (min.) (mm)	Diameter of bushing d2 (mm)	Diameter of pin d3 (mm)	Length of pin L (mm)	Height of sidebar h (mm)	Thickness of sidebar T (mm)	E (mm)	F (mm)	B (mm)	H (mm)	d4 (mm)	Breaking load Q (min.) (KN)	Weight per meter q (kg/m)
DC/T440-200Pa Ⅱ-S	200	100	48	42	30	118	80	12	76	160	200	66	14	440	41.25
DC/T510-200Pa Ⅰ-S	200	100	48	42	30	118	80	12	76	160	200	66	14	510	41.25

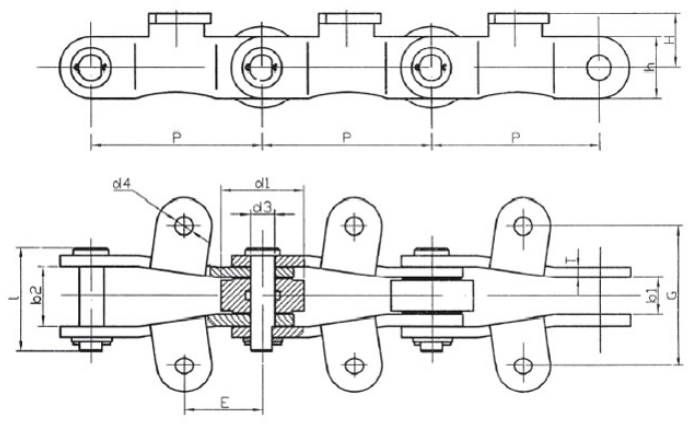

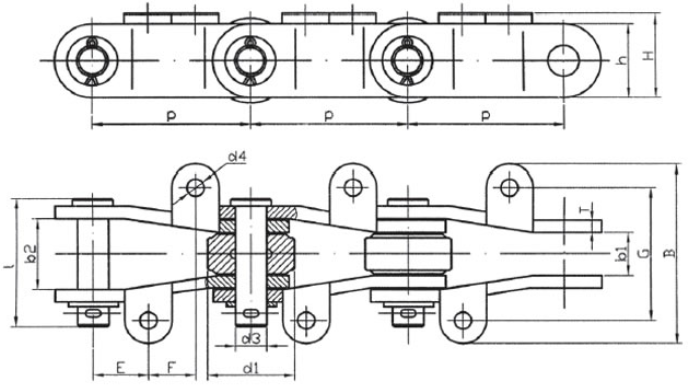

Chain No.	Pitch P (mm)	Diameter of roller d1 (min.) (mm)	Inner width of inner link b1 (min.) (mm)	Inner width of outer link b2 (mm)	Diameter of pin d3 (mm)	Length of pin L (mm)	Height of sidebar h (mm)	Thickness of sidebar T (mm)	Other data						Breaking load Q (min.) (KN)	Weight per meter q (kg/m)
									E (mm)	F (mm)	G (mm)	B (mm)	H(mm)	d4 (mm)
DC/T160-100PHa Ⅰ-S	100	55	28	46	20	80	48	8	35	30	86	116	54	11	160	14

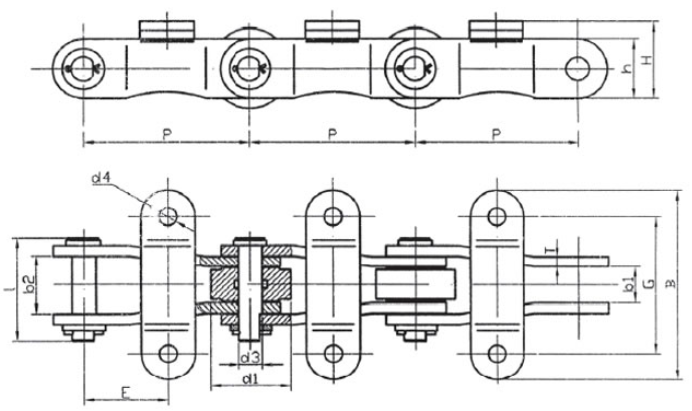

Chain No.	Pitch P (mm)	Diameter of roller d1 (min.) (mm)	Inner width of inner link b1 (min.) (mm)	Inner width of outer link b2 (mm)	Diameter of pin d3 (mm)	Length of pin L (mm)	Height of sidebar h (mm)	Thickness of sidebar T (mm)	Other data					Breaking load Q (min.) (KN)	Weight per meter q (kg/m)
									E (mm)	G (mm)	B (mm)	H(mm)	d4 (mm)
DC/T396-150PHa Ⅰ-S	150	80	32	58	25	102	60	12	75	160	210	85	16.5	396	31.5

Chain No.	Pitch P (mm)	Diameter of roller d1 (min.) (mm)	Inner width of inner link b1 (min.) (mm)	Inner width of outer link b2 (mm)	Diameter of pin d3 (mm)	Length of pin L (mm)	Height of sidebar h (mm)	Thickness of sidebar T (mm)	Other data					Breaking load Q (min.) (KN)	Weight per meter q (kg/m)
									E (mm)	G (mm)	B (mm)	H(mm)	d4 (mm)
DC/T278-154PHa II-S	154	75	34	56	22	102	56	10	77	130	180	71.5	17	278	22.5

Chain No.	Pitch P (mm)	Diameter of roller d1 (min.) (mm)	Inner width of inner link b1 (min.) (mm)	Diameter of bushing d2 (mm)	Diameter of pin d3 (mm)	Length of pin L (mm)	Height of sidebar h (mm)	Thickness of sidebar T (mm)	Other data				Breaking load Q (min.) (KN)	Weight per meter q (kg/m)
									E (mm)	G (mm)	H(mm)	d4 (mm)
DC/T620-160PHa Ⅰ-S	160	80	32	62	28	110	40	14	64.5	160	57	17	620	31

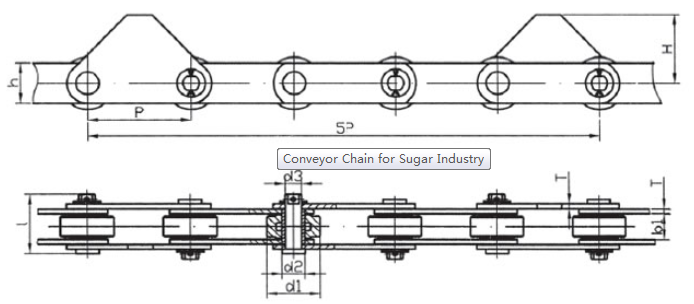

Chain No.	Pitch P (mm)	Diameter of roller d1 (min.) (mm)	Inner width of inner link b1 (min.) (mm)	Diameter of bushing d2(mm)	Diameter of pin d3 (mm)	Length of pin L (mm)	Height of sidebar h (mm)	Thickness of sidebar T (mm)	Other data	Breaking load Q (min.) (KN)	Weight per meter q (kg/m)
Chain No.	Pitch P (mm)	Diameter of roller d1 (min.) (mm)	Inner width of inner link b1 (min.) (mm)	Diameter of bushing d2(mm)	Diameter of pin d3 (mm)	Length of pin L (mm)	Height of sidebar h (mm)	Thickness of sidebar T (mm)	H(mm)	Breaking load Q (min.) (KN)	Weight per meter q (kg/m)
DC/T120-125PE Ⅰ-W	125	65	32	28	20	74	50	6	85	120	12.79
DC/T140-125PE Ⅰ-W	125	65	32	28	20	82	50	8	85	140	13.88

Chain No.	Pitch P (mm)	Diameter of roller d1 (min.) (mm)	Inner width of inner link b1 (min.) (mm)	Diameter of bushing d2(mm)	Diameter of pin d3 (mm)	Length of pin L (mm)	Height of sidebar h (mm)	Thickness of sidebar T (mm)	Other data	Breaking load Q (min.) (KN)	Weight per meter q (kg/m)
Chain No.	Pitch P (mm)	Diameter of roller d1 (min.) (mm)	Inner width of inner link b1 (min.) (mm)	Diameter of bushing d2(mm)	Diameter of pin d3 (mm)	Length of pin L (mm)	Height of sidebar h (mm)	Thickness of sidebar T (mm)	H(mm)	Breaking load Q (min.) (KN)	Weight per meter q (kg/m)
DC/T120-125PG Ⅰ-W	125	65	32	28	20	74	50	6	85	120	15.42
DC/T140-125PG Ⅰ-W	125	65	32	28	20	82	50	8	85	140	17.14

Chain No.	Pitch P (mm)	Diameter of roller d1 (min.) (mm)	Inner width of inner link b1 (min.) (mm)	Diameter of bushing d2 (mm)	Diameter of pin d3 (mm)	Length of pin L (mm)	Height of sidebar h (mm)	Thickness of sidebar T (mm)	Other data	Breaking load Q (min.) (KN)	Weight per meter q (kg/m)
Chain No.	Pitch P (mm)	Diameter of roller d1 (min.) (mm)	Inner width of inner link b1 (min.) (mm)	Diameter of bushing d2 (mm)	Diameter of pin d3 (mm)	Length of pin L (mm)	Height of sidebar h (mm)	Thickness of sidebar T (mm)	H(mm)	Breaking load Q (min.) (KN)	Weight per meter q (kg/m)
DC/T330-154PE II-W	154	80	32	36	25	100	65	12	95	330	25.16
DC/T380-154PE Ⅰ-W	154	80	32	36	25	100	65	12	95	380	25.16

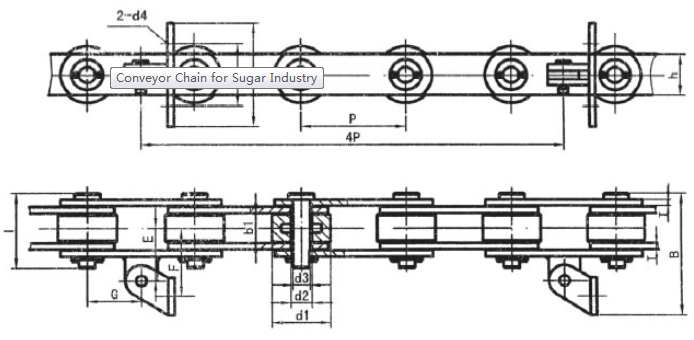

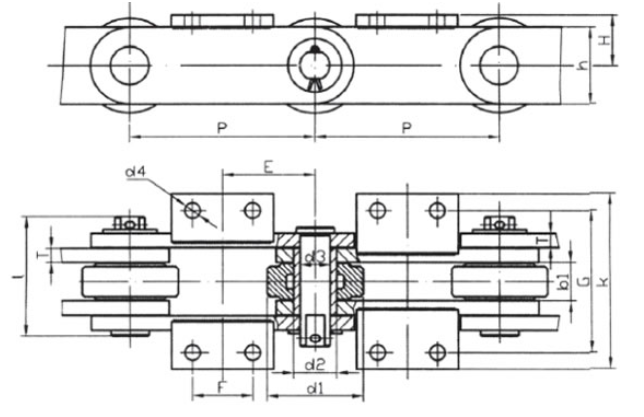

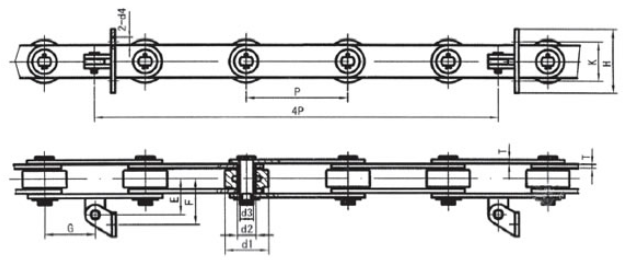

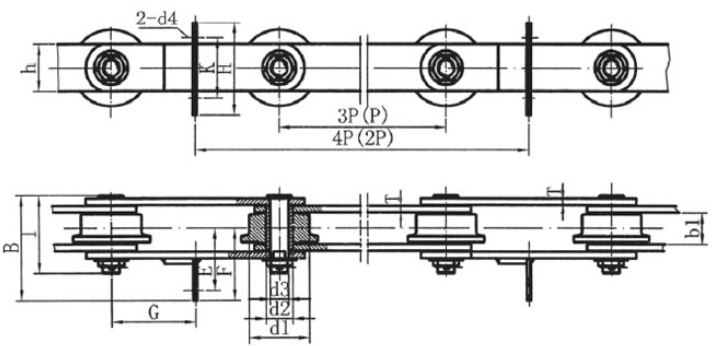

Chain No.	Pitch P (mm)	Diameter of roller d1 (min.) (mm)	Inner width of inner link b1 (min.) (mm)	Diameter of bushing d2 (mm)	Diameter of pin d3 (mm)	Length of pin L (mm)	Height of sidebar h (mm)	Thickness of sidebar T (mm)	Other data							Breaking load Q (min.) (KN)	Weight per meter q (kg/m)
									E(mm)	F(mm)	G(mm)	H(mm)	K(mm)	B(mm)	d4(mm)
DC/T100-100Pc I-G	100	55	28	24	16	71	40	6	50	65	50	98	60	116	11	100	10.34

Chain No.	Pitch P (mm)	Diameter of roller d1 (min.) (mm)	Inner width of inner link b1 (min.) (mm)	Diameter of bushing d2 (mm)	Diameter of pin d3 (mm)	Length of pin L (mm)	Height of sidebar h (mm)	Thickness of sidebar T (mm)	Other data						Breaking load Q (min.) (KN)	Weight per meter q (kg/m)
									E(mm)	F(mm)	G(mm)	H(mm)	K(mm)	d4(mm)
DC/T120-150Pc I-G	150	65	32	28	20	74	50	6	50	65	75	98	60	11	120	11.89

Chain No.	Pitch P (mm)	Diameter of roller d1 (min.) (mm)	Inner width of inner link b1 (min.) (mm)	Diameter of bushing d2 (mm)	Diameter of pin d3 (mm)	Length of pin L (mm)	Height of sidebar h (mm)	Thickness of sidebar T (mm)	Other data							Breaking load Q (min.) (KN)	Weight per meter q (kg/m)
Chain No.	Pitch P (mm)	Diameter of roller d1 (min.) (mm)	Inner width of inner link b1 (min.) (mm)	Diameter of bushing d2 (mm)	Diameter of pin d3 (mm)	Length of pin L (mm)	Height of sidebar h (mm)	Thickness of sidebar T (mm)	E(mm)	F(mm)	G(mm)	H(mm)	K(mm)	B(mm)	d4(mm)	Breaking load Q (min.) (KN)	Weight per meter q (kg/m)
DC/T160-200Fc I-G	250	72	39	32	22	88	56	6	65	80	125	96	60	126	11	160	15.75
DC/T126-250Fc I-G	250	75	38	24	16	76	40	6	55	70	125	130	100	126	13	126	10.58
DC/T160-250Fc I-G	250	72	39	32	22	88	56	8	65	80	125	98	60	126	11	160	13.67

Chain No.	Pitch P (mm)	Diameter of roller d1 (min.) (mm)	Inner width of inner link b1 (min.) (mm)	Diameter of bushing d2 (mm)	Diameter of pin d3 (mm)	Length of pin I (mm)	Height of sidebar h (mm)	Thickness of sidebar T (mm)	Other data							Breaking load Q (min.) (KN)	Weight per meter q (kg/m)
Chain No.	Pitch P (mm)	Diameter of roller d1 (min.) (mm)	Inner width of inner link b1 (min.) (mm)	Diameter of bushing d2 (mm)	Diameter of pin d3 (mm)	Length of pin I (mm)	Height of sidebar h (mm)	Thickness of sidebar T (mm)	E(mm)	F(mm)	G(mm)	H(mm)	K(mm)	B(mm)	d4(mm)	Breaking load Q (min.) (KN)	Weight per meter q (kg/m)
DC/T120-150D I-G	150	65	42	28	20	106	50	8	66.5	88	75	140	100	130	12	120	17.24
DC/T160-250D I-G	250	90	44	32	22	104	56	8	80	102	125	100	70	131	13	160	17

Chain No.	Pitch P (mm)	Diameter of roller d1 (min.) (mm)	Inner width of inner link b1 (min.) (mm)	Diameter of bushing d2 (mm)	Diameter of pin d3 (mm)	Length of pin I (mm)	Height of sidebar h (mm)	Thickness of sidebar T (mm)	Other data				Breaking load Q (min.) (KN)	Weight per meter q (kg/m)
									E(mm)	F(mm)	H(mm)	d4(mm)
DC/T50-100P I-F	100	45	25	18	12	57	32	4	50	50	27	11	50	5.5

Chain No.

Pitch P (mm)

Inner width of inner link b1 (min.) (mm)

Diameter of bushing d2(mm)

Diameter of pin d3 (mm)

Length of pin I (mm)

Height of sidebar h (mm)

Other data

Breaking load Q (min.) (KN)

Weight per meter q (kg/m)

b2(mm)

b3(mm)

D(mm)

E(mm)

F(mm)

G(mm)

H(mm)

d4(mm)

DC/T280-160 II-Y

160

31.3

280

21.56

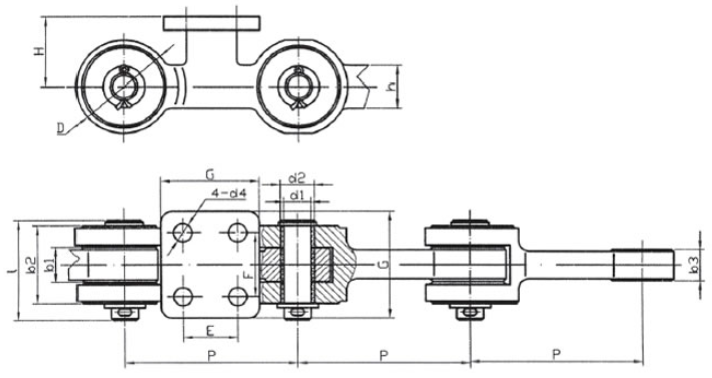

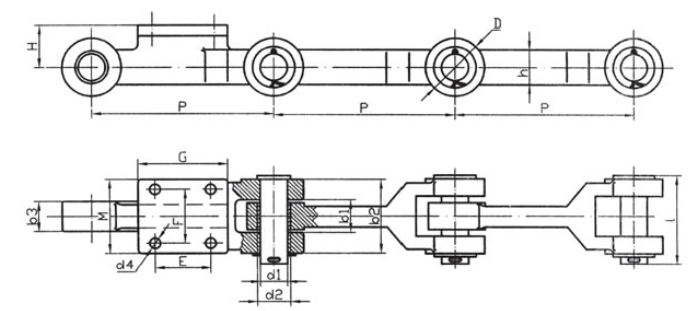

Chain No.

Pitch P (mm)

Inner width of inner link b1 (min.) (mm)

Diameter of bushing d2(mm)

Diameter of pin d3 (mm)

Length of pin I (mm)

Height of sidebar h (mm)

Other data

Breaking load Q (min.) (KN)

Weight per meter q (kg/m)

b2(mm)

b3(mm)

D(mm)

E(mm)

F(mm)

G(mm)

M(mm)

H(mm)

d4(mm)

DC/T320-200 II-Y

200

38.3

28.5

115

110

145

320

35.5

Chain No.

Pitch P (mm)

Inner width of inner link b1 (min.) (mm)

Diameter of bushing d2(mm)

Diameter of pin d3 (mm)

Length of pin I (mm)

Height of sidebar h (mm)

Other data

Breaking load Q (min.) (KN)

Weight per meter q (kg/m)

b2(mm)

b3(mm)

D(mm)

E(mm)

F(mm)

M(mm)

G(mm)

H(mm)

d4(mm)

DC/T525-304.8 II-Y

304.8

152

127

100

108

127

150

525

42.25

Chain no.	Pitch P (mm)	Inner width of inner link b1 (min.) (mm)	Diameter of pin d3 (mm)	Diameter of roller d1 (min.) (mm)	Height of sidebar h (mm)	Thickness of sidebar T (mm)	Length of pin L (mm)	Central distance of attached plate f(mm)	Hole distance of attached plate L1(mm)	Hole diameter of attached plate d4(mm)	Spanning width of attached plate L2(mm)	Height of attached plate h4(mm)	Tensile strength (KN)
DC800	203.2	46.1	25.4	88.9	71.4	12.7	124	132.1	114.3	17.5	183.1	55.5	600
DC2800	203.2	46.1	25.4	88.9	76.2	12.7	120	132.1	82.5	16	182	55.5	450
DC2190	152.4	38.1	22.2	76.2	63.5	12.7	109	112	76.2	14	148.7	46.75	400

Chain no.	Pitch P (mm)	Inner width of inner link b1 (min.) (mm)	Diameter of pin d3 (mm)	Diameter of roller d1 (min.) (mm)	Height of outer sidebar h1 (mm)	Height of inner sidebar h2 (mm)	Thickness of sidebar T (mm)	Length of pin L (mm)	Hole distance of attached plate f (mm)	Hole diameter of attached plate d4(mm)	Tensile strength (KN)
DC228.6	228.6	38	32.5	98	75	80	16	130	97	8	900
